Support Vector Machines Made Simple

24/01/2026

Support Vector Machines (SVM) in Simple Words

SVM Complete Guide

Support Vector Machine (SVM): Complete Guide

Support Vector Machine (SVM) is a powerful supervised machine learning algorithm used for classification and regression tasks. It is known for its ability to handle both linear and non-linear data effectively.

Core Idea: Find the best boundary that maximizes the margin between classes.

Why SVM is Important

Works well in high-dimensional datasets
Effective even with small data
Robust against overfitting
Flexible due to kernel trick

Key Concepts

Hyperplane

Decision boundary separating classes.

Support Vectors

Closest data points to the boundary.

Margin

Distance between boundary and nearest points.

SVM always tries to maximize the margin.

Mathematical Model

Hyperplane: w · x + b = 0

Goal: Minimize ||w|| to maximize margin

Types of SVM

Type	Description
Linear SVM	Used when data is linearly separable
Non-Linear SVM	Uses kernel trick for complex data

Kernel Trick

Linear Kernel
Polynomial Kernel
RBF (Gaussian)
Sigmoid Kernel

Kernel trick helps SVM handle non-linear data by transforming it into higher dimensions.

Advantages & Disadvantages

Advantages	Disadvantages
High accuracy	Slow for large datasets
Works in high dimensions	Kernel selection is difficult
Memory efficient	Sensitive to noise

Applications

Spam detection
Image classification
Face recognition
Bioinformatics

Quiz (Interactive)

Q1. What does SVM maximize?

Margin

Q2. What are support vectors?

Closest data points to hyperplane

Q3. Best kernel for complex data?

RBF Kernel

Q4. What does C control?

Regularization (error tolerance)

Q5. SVM is mainly used for?

Classification

Conclusion

SVM is one of the most powerful algorithms for classification tasks. It performs exceptionally well in high-dimensional spaces and is highly effective for both linear and non-linear problems.

Final Insight: Use SVM when your dataset is complex but not extremely large.

🎯 Applications of Support Vector Machine (SVM)

Support Vector Machine (SVM) is a powerful supervised machine learning algorithm widely used in real-world applications due to its ability to handle high-dimensional and complex data.

Key Insight: SVM performs best in problems where data is complex, high-dimensional, and requires a clear decision boundary.

📧 1. Text Classification

Use Cases:

Spam email detection
Sentiment analysis (positive/negative reviews)
News categorization

Why SVM?

Handles high-dimensional data (text features)
Works well with sparse datasets

🧠 2. Image Classification

Use Cases:

Face recognition
Object detection
Handwritten digit recognition

Why SVM?

Effective in complex feature spaces
Works well with pixel-based data

🏥 3. Medical Diagnosis

Use Cases:

Cancer detection (benign vs malignant)
Disease classification
Medical image analysis (MRI, CT scans)

Why SVM?

High accuracy with limited data
Handles non-linear relationships (RBF kernel)

💳 4. Fraud Detection

Use Cases:

Credit card fraud detection
Banking anomaly detection

Why SVM?

Detects outliers effectively
Works well with imbalanced datasets

📈 5. Stock Market Prediction

Use Cases:

Price trend prediction (up/down)
Buy/sell signal classification

Why SVM?

Effective for binary classification tasks

🔊 6. Speech & Pattern Recognition

Use Cases:

Voice recognition systems
Speaker identification

Why SVM?

Handles signal-based features effectively

🛡️ 7. Cybersecurity Applications

Use Cases:

Intrusion Detection Systems (IDS)
Malware classification
Network anomaly detection

Why SVM?

Detects abnormal behavior patterns
Highly effective for attack vs normal classification

📊 Summary

Application	Use Case	Why SVM Works
Text Classification	Spam detection	High-dimensional data
Image Processing	Face recognition	Complex boundaries
Healthcare	Disease prediction	High accuracy
Finance	Fraud detection	Outlier detection
Cybersecurity	Intrusion detection	Binary classification

🔚 Conclusion

Support Vector Machine is a versatile and powerful algorithm used across industries. It is especially effective when dealing with high-dimensional, complex datasets where clear separation between classes is required.

Final Insight: If your problem involves classification with complex patterns and limited data, SVM is often one of the best choices.

Support Vector Machine (SVM) is a machine learning method that tries to draw the best possible line (or boundary) between different groups of data. Imagine you have red dots and blue dots on a sheet of paper. SVM looks for a line that separates the colors and keeps the line as far away from both groups as possible. This distance is called the margin, and a larger margin usually means better generalization to new data.

The dots that lie closest to the separating line are called support vectors. They are important because they define exactly where the line should be placed. If you move these points, the line changes. SVM can also handle more complex shapes by using a trick called a kernel, which lets it separate data that is not linearly separable by effectively bending or curving the boundary in a higher-dimensional space.

Support Vector Machine (SVM) Explained in Simple Words

Machine Learning sounds complicated, but many of its ideas are actually very simple.
One such powerful yet easy-to-understand concept is the Support Vector Machine (SVM).

Let's understand SVM without math, coding, or jargon.

Imagine This Simple Situation

Suppose you have two types of fruits on a table:

🍎 Apples
🍊 Oranges

Apples are mostly on the left side of the table, and oranges are on the right.

Your task is simple:

👉 Draw a line that separates apples from oranges.

Many Lines Are Possible… But Which One Is Best?

You can draw many lines that separate apples and oranges.

But SVM asks a smarter question:

Which line is the safest line?

The safest line is the one that:

Is far away from apples
Is far away from oranges
Leaves maximum empty space between the two groups

This empty space is called the margin.

What Does SVM Actually Do?

Support Vector Machine (SVM) finds a boundary (line) that:

Separates two groups
Keeps the maximum possible gap between them
Uses only the closest points to decide the boundary

Those closest points are called support vectors.

📌 Even if you move other points, the boundary stays the same — only support vectors matter.

Why "Support Vector" Name?

Support → They support the decision boundary
Vectors → Data points (shown as points in space)

👉 These few points control the entire decision.

What If a Straight Line Doesn't Work?

Sometimes data looks like this:

🍎 🍊 🍎 🍊 🍎

No straight line can separate them.

SVM says:

"Let me change the view."

It transforms the data into a higher dimension, separates it easily, and then comes back.

This clever trick is called the Kernel Trick.

You don't see the transformation — you just get the correct result.

Real-Life Examples of SVM

SVM is used in many everyday applications:

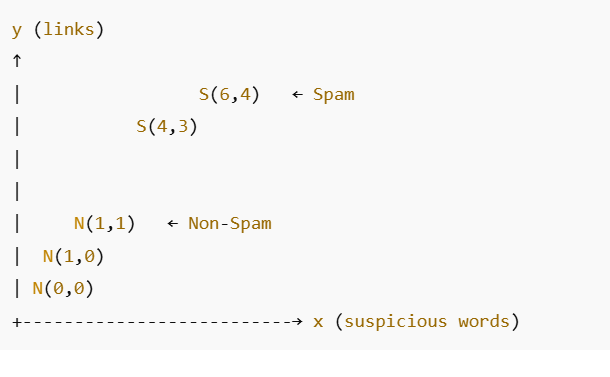

📧 Spam vs Non-Spam emails

💳 Fraud vs Genuine transactions

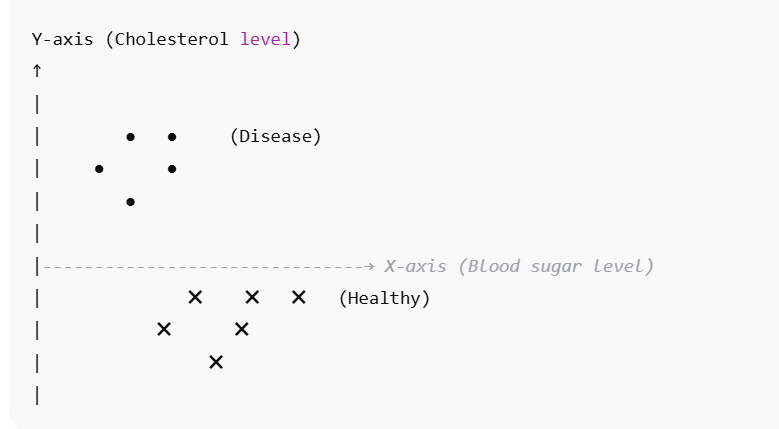

🧑‍⚕️ Disease vs Healthy diagnosis

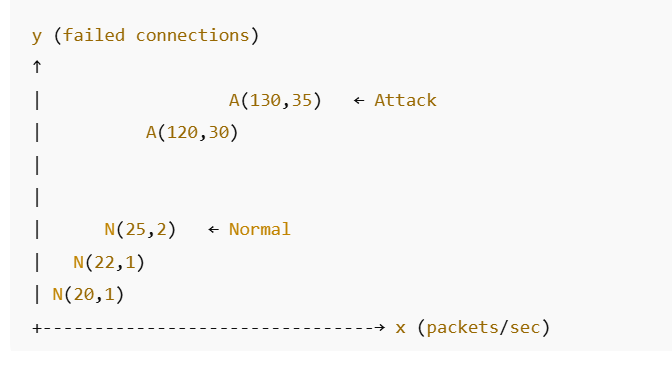

🔐 Cyber attack vs Normal network traffic

📄 Resume shortlisted or rejected

In all cases, SVM is simply drawing the safest boundary between two groups.

Why Is SVM So Popular?

✔ Works well even with small datasets
✔ Very accurate when data is clearly separable
✔ Powerful for text, images, and security problems
✔ Strong mathematical foundation

Simple One-Line Definition

Support Vector Machine is a machine learning method that separates data into groups by drawing the safest possible boundary between them.

What is a margin in SVM?

In SVM, the margin is the distance between the decision boundary (separating line/plane) and the closest data points from each class.

Those closest points are called support vectors — they literally support the boundary.

Think of it like this 👇

The decision boundary is the "road", and the margin is the safety buffer on both sides of the road.

If a point lies within the margin in SVM, the conclusion is:

The point is correctly classified but with low confidence and incurs a penalty.

Hard Margin:

No data point is allowed inside the margin; data must be perfectly separable.

Soft Margin:

Some margin violations are allowed to handle noise and improve generalization.

What problem does the Kernel Trick solve?

Kernel trick means changing the view of the data so that separation becomes easy.

Analogy: Ground → Hill ⛰️

On flat ground, people are mixed
Lift some people onto a hill
Suddenly, groups separate clearly

You didn't move people manually —
👉 you changed the space

Analogy: Paper → Fold it

Step 1: Flat paper (problem stage)

Imagine a flat sheet of paper with dots:

🔴 Red dots form a circle
🔵 Blue dots are inside the circle

On the flat paper:

❌ You cannot draw a straight line to separate inside vs outside

This is non-linear data.

Step 2: What "folding" really means

Now imagine pushing the center of the paper upward, like making a small hill without tearing or moving dots manually.

Dots near the center go up
Dots far from center stay down

📌 This "upward push" is adding a new height dimension.

Step 3: After folding (new view)

Now look from the side:

🔵 Blue dots (inside circle) → on top
🔴 Red dots (outside circle) → below

Suddenly:

✅ You can separate them with a flat cut

That flat cut = SVM straight boundary
The fold = Kernel trick

Key clarification (most important)

❌ Kernel trick is NOT physically folding paper
✅ It is changing coordinates mathematically

Points that were mixed in 2D become separated in 3D.

🎯 Types of Kernels in Support Vector Machine (SVM)

In Support Vector Machines (SVM), a kernel is a mathematical function that transforms data into a higher-dimensional space, making it easier to separate complex datasets.

Key Idea: Kernels allow SVM to solve non-linear problems without explicitly transforming data.

1️⃣ Linear Kernel

Formula:

K(x, x') = x · x'

Use Cases:

Linearly separable data
Text classification

Advantages:

Simple and fast
Works well with high-dimensional data

2️⃣ Polynomial Kernel

Formula:

K(x, x') = (x · x' + c)^d

Use Cases:

Data with curved relationships
Pattern recognition

Key Parameters:

d = degree of polynomial
c = constant

3️⃣ RBF (Radial Basis Function) Kernel

Formula:

K(x, x') = exp(-γ ||x - x'||²)

Use Cases:

Complex, non-linear datasets
Image classification
Medical diagnosis
Cybersecurity anomaly detection

Key Parameter:

γ (gamma): Controls influence of data points

Note: RBF is the most commonly used kernel in real-world applications.

4️⃣ Sigmoid Kernel

Formula:

K(x, x') = tanh(α x · x' + c)

Use Cases:

Neural network-like behavior

Characteristics:

Acts like an activation function
Less commonly used

5️⃣ Custom Kernel

Use Cases:

Domain-specific problems
Bioinformatics
Graph-based data

Custom kernels are designed based on specific problem requirements when standard kernels are not sufficient.

📊 Comparison of Kernels

Kernel	Data Type	Complexity	Usage
Linear	Simple	Low	Fast, scalable
Polynomial	Moderate	Medium	Curved patterns
RBF	Complex	High	Most popular
Sigmoid	NN-like	Medium	Rare usage

🔚 Conclusion

Kernels are the backbone of SVM’s power. By choosing the right kernel, SVM can effectively handle both simple and highly complex datasets.

Final Insight: Always start with a linear kernel. If performance is not satisfactory, switch to RBF for better results.

Support Vector Regression (SVR) Explained

```

Support Vector Regression (SVR): A Practical Guide

Introduction

Support Vector Machines (SVM) are widely known for classification, but they are equally powerful for regression tasks. This variant is called Support Vector Regression (SVR).

        SVR focuses on fitting a function within a defined error margin (ε) rather than minimizing every single error.


How SVR Works

Instead of trying to perfectly fit all data points, SVR introduces an epsilon (ε) margin, forming a tube around the regression line.

Points inside the margin → No penalty
Points outside the margin → Penalized
Only critical points (support vectors) influence the model

Real-World Example: House Price Prediction

House Size (sq ft)	Price (₹ Lakhs)
800	40
1000	50
1200	65
1500	80

SVR will fit a function that predicts price while allowing small deviations within a tolerance band.

Key Parameters in SVR

C (Regularization): Controls trade-off between error and smoothness
ε (Epsilon): Defines margin of tolerance
Kernel: Handles linear and nonlinear relationships

Python Implementation


```

from sklearn.svm import SVR
import numpy as np

# Data

X = np.array([[800], [1000], [1200], [1500]])
y = np.array([40, 50, 65, 80])

# Model

model = SVR(kernel='linear', C=100, epsilon=5)

# Train

model.fit(X, y)

# Predict

prediction = model.predict([[1300]])

print("Predicted Price:", prediction)

```

Applications of SVR

Stock price prediction
Demand forecasting
Energy consumption analysis
Cybersecurity risk scoring

Why SVR Matters

        Unlike traditional regression, SVR ignores small errors and focuses only on significant deviations, making it more robust and generalizable.


A. Fit all points
B. Reduce features
C. Generalize well
D. Maximize errors

✅ Answer: C
